WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen

Büyük resim : WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CHINA HUATAO
Sertifika:	ISO9001,CE,SGS etc.
Model numarası:	HT

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	USD 20-50 per pcs
Ambalaj bilgileri:	Ahşap Kutu veya Karton Kutu
Teslim süresi:	5-8 İŞ GÜNÜ
Ödeme koşulları:	L/C, T/T, Western Union, PayPal
Yetenek temini:	100 adet/ay

İletişim

Detaylı ürün tanımı

Ürün Adı:	WS85 PU Ekran Paneli 12 '' × 24 '' Titreşimli ekran için modüler poliüretan panel si	Anahtar Kelimeler:	PU ekran paneli, su çekme ekran paneli,WS85
Kalınlık:	20mm,30mm,40mm	Malzeme:	Poliüretan(PU)
Renk:	Turuncu, Kırmızı, Yeşil, Sarı	Başvuru:	Taş Ocağı Taraması‌
Satış Birimi:	Tek öğe	Paket:	karton veya ahşap kutu
Vurgulamak:	ws 85 pu screen panel , modular pu screen panel , modular ws85 screen panel

WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

1)Description‌ of WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

High-Elasticity WS85 PU Dewatering Screen Plate

Model: WS85-MDI Series
Highlights:
MDI Material: Superior flexibility (-40°C to 80°C tolerance) with steel wire reinforcement.
Energy Efficiency: 1.32 kg/m³ density cuts vibrating motor load by 30%.
Certified Safety: Non-toxic, flame-retardant, and oil-resistant.
Ideal For: Harsh environments requiring chemical resistance (e.g., saltwater ore processing).

Factory-Priced PU Screen Mesh for Linear Vibrating Screens

Model: WS85-300×610 Standard
Specs:
Aperture Options: Square (9mm), round (5–50mm), or slotted (0.1–170mm).
Durability: 8–10× lifespan vs. steel mesh; 3× vs. rubber screens.
Value: Includes 6-month warranty against abrasion or tearing.
Use Case: Cost-effective replacement for mining/aggregate screening.

2) Key Features & Benefits of WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

✅ Durability:	8–10x lifespan vs. steel, anti-abrasion, tear-resistant.
✅ Efficiency:	Self-cleaning, anti-clogging, 30% energy saving.
✅ Customization:	Aperture sizes (0.1–170mm), shapes, modular compatibility.
✅ Certified:	Flame-retardant, non-toxic, ISO-compliant.

3) Specification of WS85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System for Vibrating Screen

Material	steel frame and polyurethane surface
Feature	WS85,Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening size	Slot Width 0.1mm – 2.5mm
Screen Width	305mm, 500mm and 515mm, others can be designed.
Screen length	305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed.
Connection type	WS85
Application	* Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste.

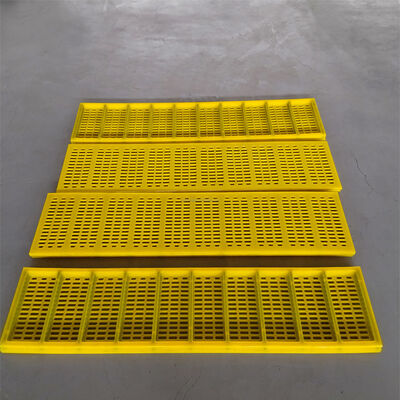

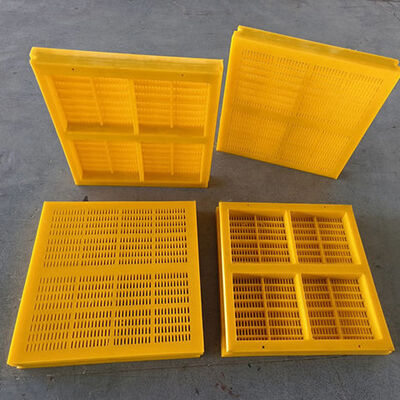

4) Images of Polyurethane Dewatering Screen Panel include:

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 0

5) Working Processing of Polyurethane Dewatering Screen Panel

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 4

6). Packaging & Logistics: Wooden box package.

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 5

7) Application of Polyurethane Dewatering Screen Panel

WS 85 PU Screen Panel 12''×24'' Modular Polyurethane Panel System For Vibrating Screen 6

HUATAO Hot-Selling Polyurethane Product List as below:

Urethane Screen	Tufflex Screen
Polyurethane Dewatering Screen Mesh	WS 85 Modular Screen
Polyurethane Screen Panels	Rotex Replacement Screens
Rubber Screen Panel	Vibrating Screen Mesh
Self cleaning Wire Mesh	Shale Shaker Screen
