BOPET Film Production MDO Nip Roller with 60-90 Shore A Hardness for Machine Direction Orientation and Uniform Pressure

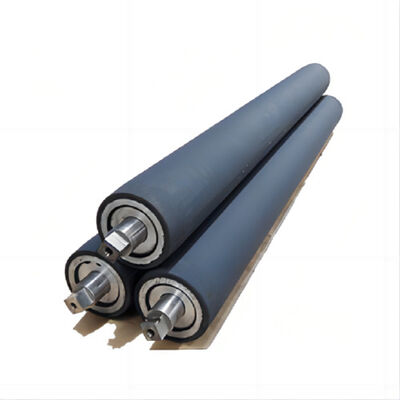

Büyük resim : BOPET Film Production MDO Nip Roller with 60-90 Shore A Hardness for Machine Direction Orientation and Uniform Pressure

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	HUATAO
Sertifika:	ISO
Model numarası:	MDO nipp roller

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	2000USD/pc-5000USD/pc
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	10-20 iş günü
Ödeme koşulları:	L/C,T/T
Yetenek temini:	20000 ADET/Yıl

İletişim

Detaylı ürün tanımı

Ürün Adı:	BOPET Film Üretim Hattı MDO Nip Roller HNBR Kauçuk Kaplamalı	Anahtar Kelimeler:	MDO Nip Roller, MDO Press Roller, Silikon Kauçuk MDO Nip Roller, Silikon Kauçuk Kaplı MDO Nip Roller
Kaplı kauçuk rengi:	Kırmızı siyah	Başvuru:	BOPET hattı MDO Standları
Kabuk Malzemesi:	Q345B	Şaft malzemesi:	45# çelik
Kauçuk malzeme:	Silikon Kauçuk, HNBR	Yüzey sertliği:	60-90 Sahil A
Vurgulamak:	BOPET filmi MDO nip rulo , Endüstriyel rulo 60-90 Shore A , makine yönü yönlendirme rulo

BOPET Film Production Line MDO Nip Roller HNBR Rubber Coated

The MDO (Machine Direction Orientation) Nip Roller is a critical component in BOPET film production lines, where cast film is stretched in the machine direction through a three-step process.

Production Process Overview

Preheating: Film passes through preheat rolls to acquire stretchable properties with controlled heat application
Stretching: Film undergoes stretching via specialized rolls (smaller than preheat/annealing rolls) with nip rollers acting on stretching rolls
Annealing: Final temperature application minimizes film relaxation for optimal product characteristics

Key Features

Surface Quality: Precision-engineered flat, smooth, centered, and round surface ensures continuous sealing
Durometer: Soft rubber covering conforms perfectly to film surfaces, including folded edges or gusseted films
Air Trapping: Designed to effectively trap air within film bubbles in conventional cooling systems
Repairable: Surface can be restored through regrinding or recovering when worn or damaged

Performance Benefits for BOPP Film

Maintains consistent speed for optimal film quality and production efficiency
Enhances bubble stability throughout the production process
Prevents film defects with precision-engineered smooth surfaces
Applies uniform pressure across the entire film width
Facilitates defect detection with specialized nip impression films

Technical Specifications

Component	Specification
Shaft material	45# steel
Shell material	Q235
Bearing	SKF/NSK or equivalent grade
Roller surface	Silicon rubber coated
Silicon Rubber hardness	60-80 Shore A
Temperature stability	Up to 250℃

Manufacturer Profile

Huatao Group, established in 2008, is a leading manufacturer with over 15 years of experience in producing high-quality rollers for various industries including paper, plastic, rubber, and nonwoven fabric production.

Our comprehensive product range includes:

Paper industry rollers: forming, vacuum couch, dandy, breast, press, and dryer cylinders
Plastic & rubber industry components: chill rollers, MDO rollers, PRS cooling rollers, corona treatment rollers
Nonwoven fabric production rollers: cylinder, doffer, guide, and embossing rollers

With products exported to 96+ countries, Huatao Group maintains a strong commitment to innovation, reliability, and customer satisfaction, offering customized solutions to meet diverse industrial requirements.
