High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency

High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency
High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency

Büyük resim :  High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HUATAO
Sertifika: ISO
Model numarası: emme kanepe rulosu
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: 2000USD/pc-5000USD/pc
Ambalaj bilgileri: ahşap kasalar
Teslim süresi: 1-3 ay
Ödeme koşulları: L/C,T/T
Yetenek temini: 10000 Adet / Yıl
Detaylı ürün tanımı
Ürün Adı: Karton Kraft Kağıt Üretim Makinesi Emme Kanepe Rulo Vakum Roleri Anahtar Kelimeler: Süpürme Kanepe Rulo, Vakum Süpürme Kanepe Rulo, Kağıt Makinesi Süpürme Kanepe Rulo
Kabuk Malzemesi: SS304,SS316,SS316L veya dupleks paslanmaz çelik Şaft malzemesi: Dökme çelik veya QT500-7
Süpme kutusu malzemesi: SS304 Çap: 400-1200MM
Yüz Uzunluğu: 2000-9000mm Hız: 2000 m/dak'ya kadar
Vurgulamak:

Yüksek dayanıklılıklı emme kanepe rulo

,

QT500-7 akımlı endüstriyel silindir

,

Emme kanepe rulo 400-1200mm çapında

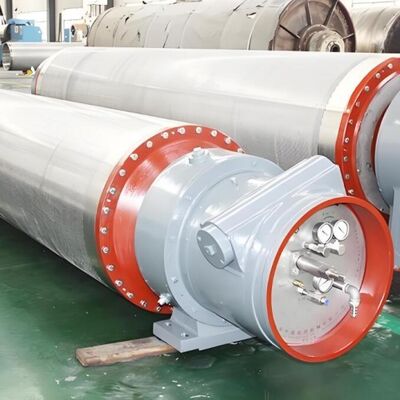

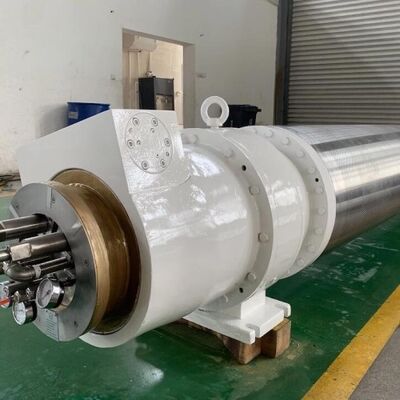

Board Kraft Paper Making Machine Suction Couch Roll Vacuum Roller
Suction Couch Roll Overview
The vacuum roller is a critical component of papermaking machinery located at the wet end section. It consists of a roller body, vacuum box, bearing seats, water spray pipe, air cushion pipe, rubber wheel, and vacuum regulating valve.
Key Features and Benefits
  • Roller shell constructed from high-grade bronze or stainless steel for durability
  • Shell thickness optimized for rigidity and strength requirements
  • Enhances press dewatering efficiency with thin shell design
  • Improves paper dryness compared to conventional pressing methods
  • Reduces paper web crushing during the process
  • Ensures uniform dehydration across the banner width
  • Maintains felt in stable, optimal condition
Technical Specifications
Component Specification
Shell material SS304, SS316, SS316L or duplex stainless steel
Shaft Cast steel or QT500-7
Suction box material SS304
Diameter 400-1200mm
Face length 2000-9000mm
Speed Up to 2000m/min
High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency 0 High Strength Suction Couch Roll with QT500-7 Shaft and 400-1200mm Diameter for Improved Dewatering Efficiency 1
About Huatao Group

Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of expertise serving:

  • Paper Industry: Forming rollers, vacuum couch rollers, dryer cylinders, calender rollers
  • Plastic & Rubber Industry: Chill rollers, stretching rollers, treatment rollers
  • Nonwoven Fabric Industry: Cylinder rollers, guide rollers, embossing rollers

Our products are exported to 96+ countries, backed by our commitment to quality, innovation, and customer satisfaction. We understand unique customer requirements and match them with the optimal manufacturing solution from our network of specialized facilities.

Huatao Group ensures every customer receives reliable products with comprehensive support throughout the product lifecycle.
