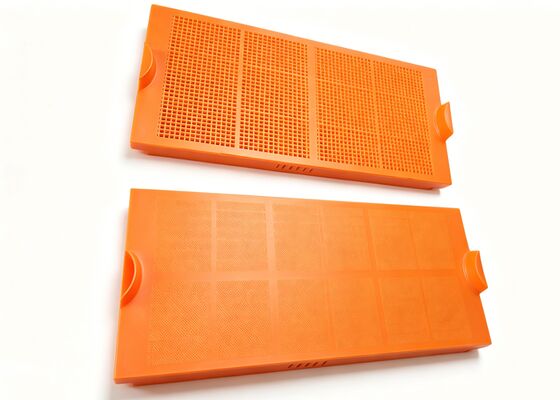

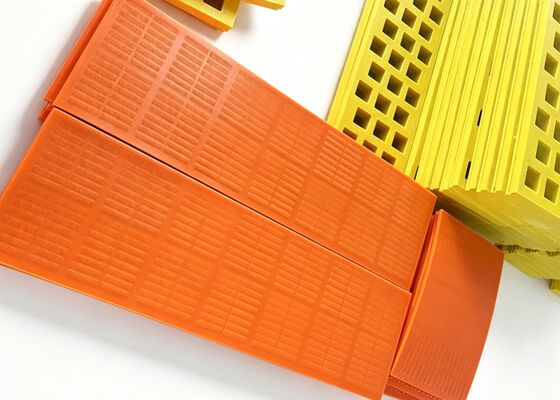

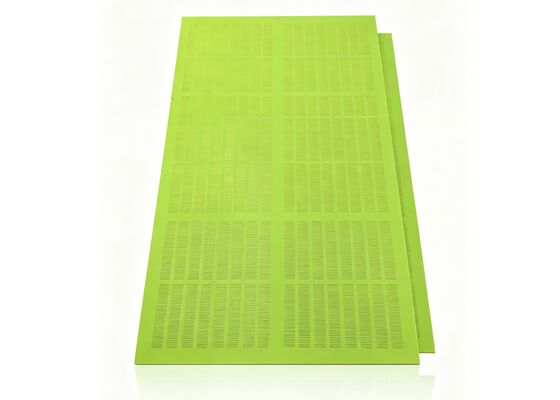

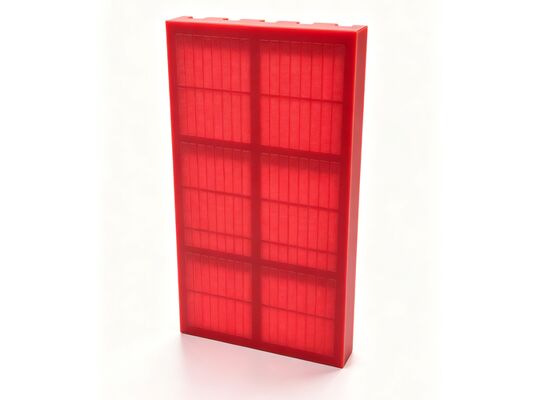

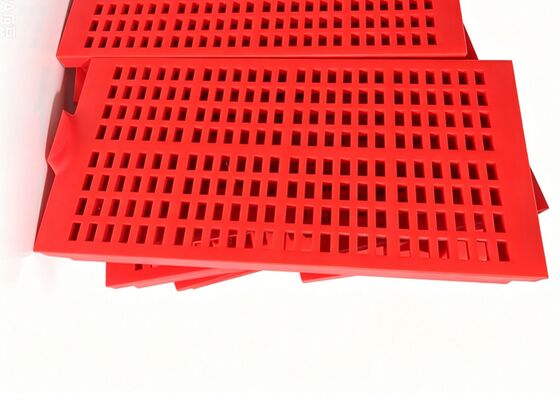

Centrifugal Screening Polyurethane Screen Basket for Mineral Dehydration and Sizing

Büyük resim : Centrifugal Screening Polyurethane Screen Basket for Mineral Dehydration and Sizing

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Huatao
Sertifika:	ISO9001, CE
Model numarası:	PU Ekran Paneli
Belge:	2026-Huatao Catalogue of Mi...on.pdf

Ödeme & teslimat koşulları:

Min sipariş miktarı:	5 adet
Fiyat:	USD 35 - 45/Piece
Ambalaj bilgileri:	Standart ihracat ambalajı
Teslim süresi:	5-7 gün
Ödeme koşulları:	T/T,Western Union,L/C,D/A,D/P
Yetenek temini:	Aylık 10000 Adet

İletişim

Detaylı ürün tanımı

Malzeme:	Poliüretan malzeme ve gömülü çelik çerçeve	Diyafram Boyutu:	Min.0,053mm
tip:	Ws85,Ls Serisi	Kalınlık:	30mm,40mm,50mm
Şartname:	OEM	Üretim kapasitesi:	10000 adet/ay
Vurgulamak:	Centrifugal polyurethane screen basket , Mineral dehydration screen panel , Polyurethane sizing screen basket

Centrifugal Screening Polyurethane Screen Basket for Mineral Dehydration and Sizing

Product Overview

The Centrifugal Screening Polyurethane Screen Basket is a specialized high-performance component designed for mineral dehydration and sizing within centrifugal machines. In these applications, the screen is subjected to extreme centrifugal forces and high-velocity slurry flow, which can quickly erode traditional metal baskets. Our baskets are manufactured from specially formulated polyurethane that is reinforced with a high-tensile embedded steel frame to ensure structural integrity under intense rotational stress. The use of polyurethane provides a smooth, low-friction surface that resists the "pegging" of particles, ensuring a consistent flow of material and efficient water removal.

Performance data shows that our polyurethane baskets offer a wear resistance 3 to 8 times greater than stainless steel wedge wire. This longevity is a critical factor in reducing the cost-per-ton in large-scale coal washing and mineral recovery plants. The baskets feature precision-engineered slotted apertures, with widths ranging from 0.1mm to 2.5mm, allowing for the separation of ultra-fine particles from liquid streams. We offer these baskets in various thicknesses (30mm, 45mm, or 50mm) to balance the need for high open area with the necessity of a durable wear layer. Because they are resistant to both corrosion and abrasion, these baskets are ideal for processing brine, chemical salts, and abrasive mineral ores. By upgrading to a polyurethane centrifugal basket, operations can enjoy a more reliable dehydration process with significantly longer intervals between equipment overhauls.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.

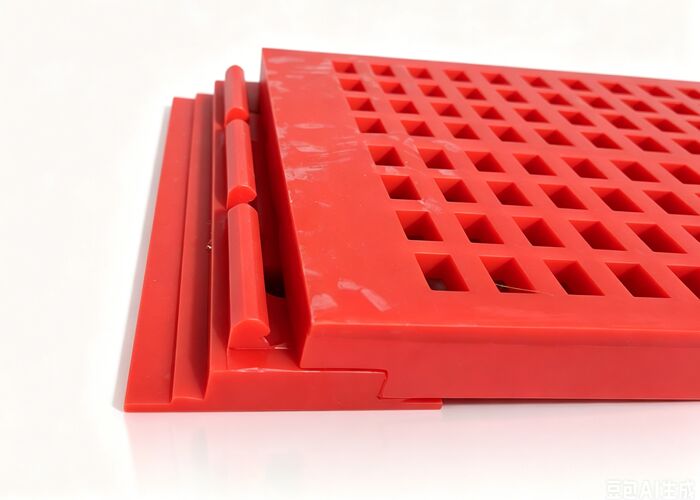

Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
