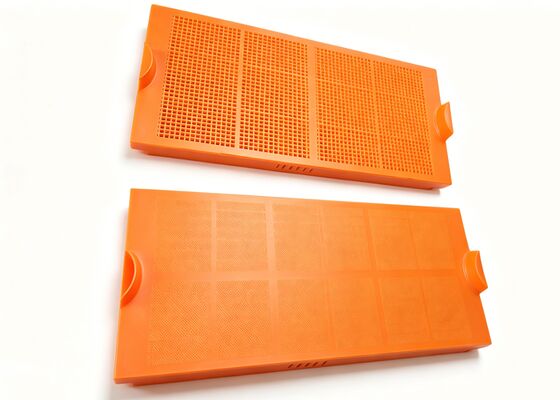

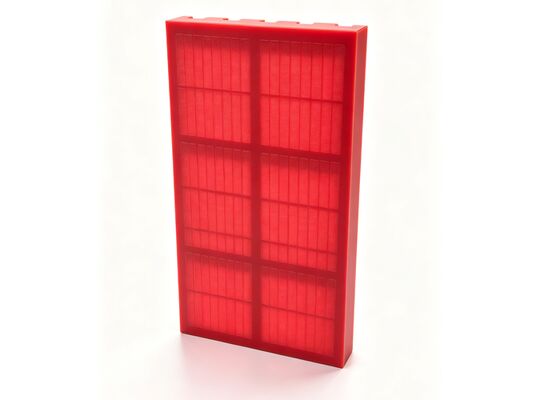

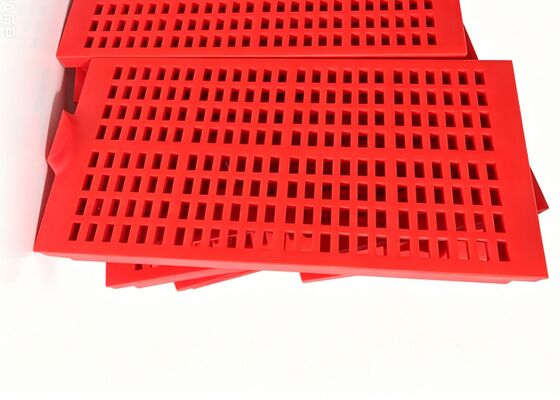

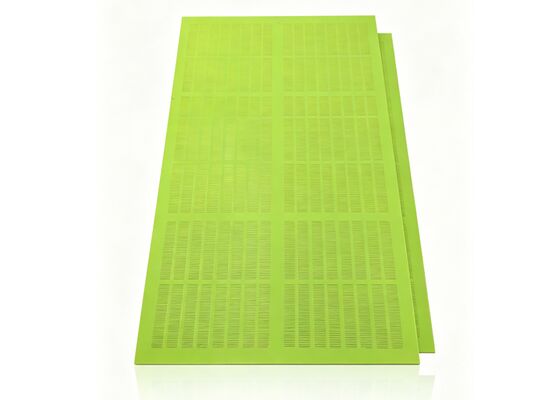

High Strength Polyurethane Sieve Plate for Granite and Basalt Quarrying Operations

Büyük resim : High Strength Polyurethane Sieve Plate for Granite and Basalt Quarrying Operations

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Huatao
Sertifika:	ISO9001, CE
Model numarası:	PU Ekran Paneli
Belge:	2026-Huatao Catalogue of Mi...on.pdf

Ödeme & teslimat koşulları:

Min sipariş miktarı:	5 adet
Fiyat:	USD 35 - 45/Piece
Ambalaj bilgileri:	Standart ihracat ambalajı
Teslim süresi:	5-7 gün
Ödeme koşulları:	T/T,Western Union,L/C,D/A,D/P
Yetenek temini:	Aylık 10000 Adet

İletişim

Detaylı ürün tanımı

Malzeme:	Poliüretan malzeme ve gömülü çelik çerçeve	Diyafram Boyutu:	Min.0,053mm
tip:	Ws85,Ls Serisi	Kalınlık:	30mm,40mm,50mm
Şartname:	OEM	Üretim kapasitesi:	10000 adet/ay
Vurgulamak:	polyurethane sieve plate for quarrying , high strength polyurethane screen panel , granite basalt quarry sieve plate

High Strength Polyurethane Sieve Plate for Granite and Basalt Quarrying Operations

Product Overview

The High Strength Polyurethane Sieve Plate is the premier choice for the punishing conditions of granite and basalt quarrying operations. These hard, abrasive volcanic rocks can destroy standard metal screening media in a matter of days. Our sieve plates are engineered to survive this environment by using a heavy-duty, specially formulated polyurethane elastomer that absorbs impact energy rather than resisting it through brittleness. Each plate is supported by an internal high-tensile strength steel frame, providing the structural "backbone" required to support tons of falling rock without bowing or snapping. This combination ensures that the plate remains rigid while the surface handles the abrasion.

Technically, these plates are built for the heaviest duty cycles. They are often provided in the thickest available options, such as 45mm or 50mm, to provide a massive wear cushion. This results in a service life that is 3–8 times longer than manganese steel or wire mesh. The apertures are typically larger for quarrying but can be customized with tapered holes to prevent the "wedging" of sharp rocks (anti-plugging). Standard sizes include widths of 305mm, 500mm, and 515mm, with lengths extending up to 1220mm, ensuring compatibility with most primary and secondary vibrating screens. In addition to their durability, these polyurethane plates significantly dampen the deafening noise levels often associated with granite processing, creating a safer environment for workers while providing an exceptionally high throughput for the most abrasive materials on earth.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular

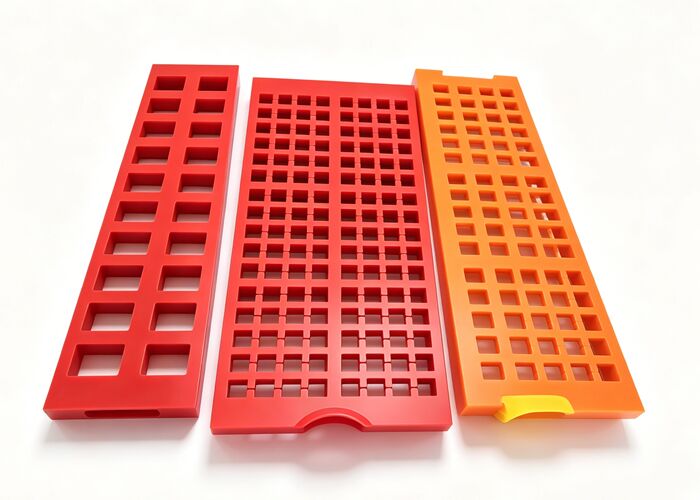

Cell Type	Slot,Square,Round etc.

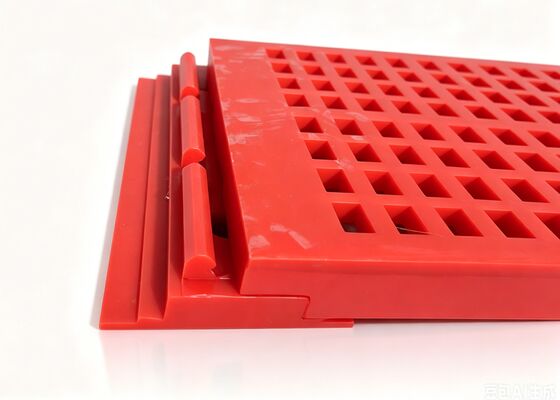

Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
