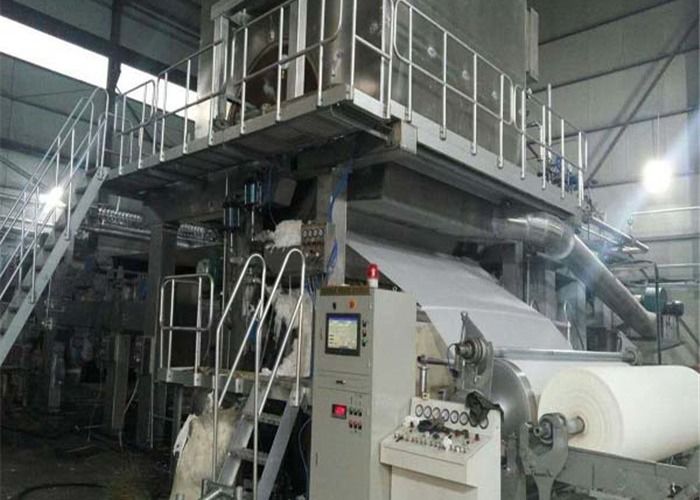

3600 Crescent Tissue Paper Machine With Design Speed 600-800m/min

3600 Crescent Tissue Paper Machine With Design Speed 600-800m/min

Technical Specification Sheet

• Product : toilet paper , towel paper , tissue paper
• Raw material : wood pulp , bamboo pulp and so on
• Grammage : 12-45 g/㎡
• Trim width : 3600 mm
• Working speed : 600-800m/min ( dryer line speed )
• Designing speed : 1000m/min ( dryer line speed )
• Creping ratio :28%
• Capacity : 39t/d ( calculated by 700m/min dryer line speed , grammage 15 g/㎡, creping ratio 28% )
• Gauge : 3800mm-3900mm
• Drive method : sectional drive , AC frequency control
• Installed capacity : 263.5kw ( accessory motor not included )
• Dimension : 18000*10500*7000mm ( L*W*H)
• Max reeling diameter : 2000mm

Configuration Introduction :

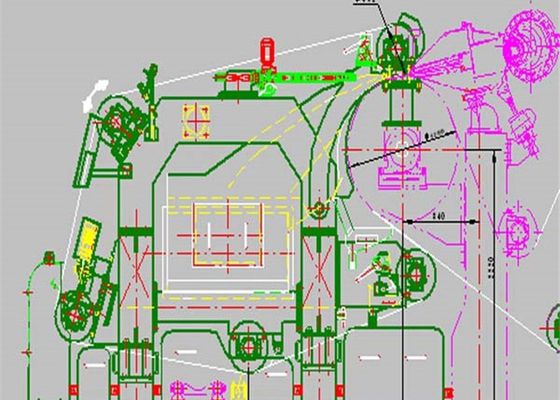

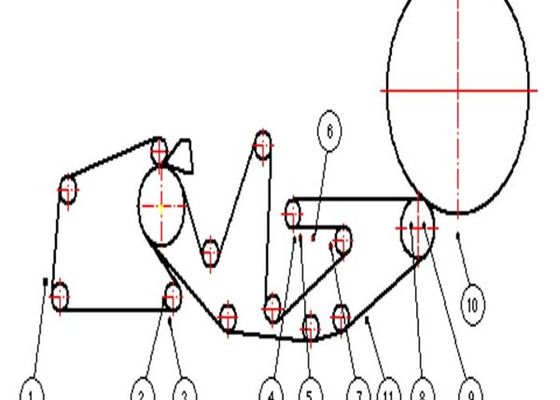

• This machine is middle speed crescent former tissue paper machine with single felt , single wire and multi drive point . consists of forming section , press section , dryer section , reeling section , drive section , foundation section , control system and so on .

• Forming section include : head box , forming roll , water tray , wire part , inside white water tank , guide roll and cleaning doctor .

• Press and dryer section includes one set Φ3330mm yankee dryer , one set touch roll , one set felt circle , frame and so on . suction touch roll adopts air bag pressurized . one set felt circle connect with forming section , equips with pneumatic guider , electrical stretcher , guide roll , high pressure oscillating spray pipe , low pressure sector spray pipe and felt cleaning device . dryer adopts rolling bearing , equips with lubrication system , recycling lubrication .

• Hot wind recycling breath type hood , can finish approx 40% drying capacity . hood consists of dry and wet section , both are open type , easy to clean .

• Consists of forming roll , dryer and reeling machine three drive point . forming roll drive is hardened reduce equips with cardan shaft , dryer drive is hollow shaft reduce , reeling machine is hardened reduce . forming section and dryer are independent drive , easy to clean felt wire and for dryer pre-heating .

• Reeling machine consists of reeling drum , reeling drum doctor , main arm system , accessory arm system , accessory arm drive system , arc roll spread device , frame and so on . reeling drum adopts coupler , equips with AC motor , YZL hardened reduce drive method .
•

• Item / PM type	1575	1880	2400	2900	3500	3900
  Design Speed (m/min)	250	250	250	250	250	250
  Working Speed (m/min)	160-230	160-230	160-230	160-230	160-230	160-230
  GSM Range (g/m2)	13-30	13-30	13-30	13-30	13-30	13-30
  Capacity	4-6	5-8	7-10	8-12	10-15	11-18
  Diameter of Dryer (mm)	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000	Φ2500-3000
  Motor (kw)	37-45	45-55	55-75	75-90	90-110	90-110
  Gauge(mm)	2400	2800	3400	3900	4500	4800

•
