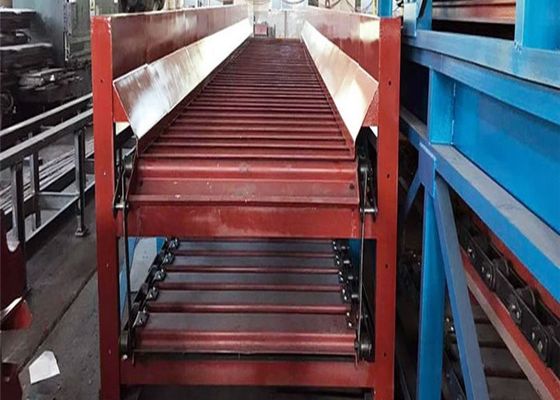

Transportation Chain Conveyor Belt For Waste Paper Pulp Processing Paper Mill
Quick Details:
Structure: Chain Conveyor
Material: Steel
Voltage: 380v
Material Feature: Heat Resistant
Load Capacity: 60-600m3/h
Power(W): 5500-55000w
Materials: Paper pulp or waste paper plate
Capacity(m3/h): 60-600
Width of chain plate(mm): 1200-2600
Max.Limit of Material (mm): 1000-2400
Application: Paper industry
Feature: High Capacity
Warranty: 1 Year
Chain Conveyor
Application:
Chain conveyor is used for conveying waste paper and pulp board to the pulper. The conveying speed is adjustable.
Main Technical Parameters:
| Type |
HT-1200 |
HT-1400 |
HT-1600 |
HT-1800 |
HT-2000 |
HT-2200 |
HT-2400 |
| Width of conveyor: mm |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
| Conveying speed:m/min |
0-6 |
| Inclined angle: ° |
20-25 |
| Power: kw |
11-15 |
15-22 |
22-30 |
30-37 |
37-45 |

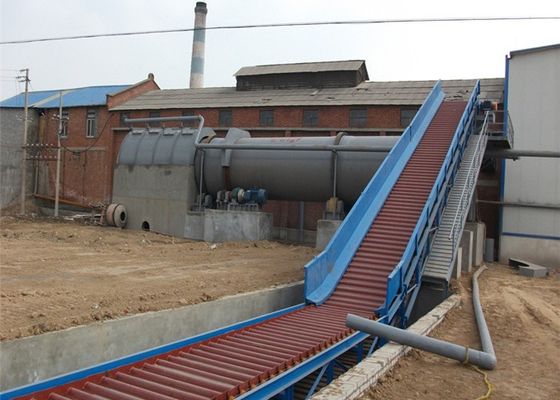

Application: Chain conveyors are mainly used in the papermaking industry to transport a variety of loose or bundled materials, which can be transported horizontally or with a slope of less than 30°. Mostly used for feeding waste paper, pulp board to pulper.
Chain feed width :1200-2600mm
Capacity feed:60-600m3/h
Motor power:3-55kw
Application:
Chain conveyor type material handling devices selling mainly used for conveying various kinds of pulp board, waste paper in bulk and in bundle which can be horizontal conveyor or inclined conveyor(<30°).
Intended particularly for loading of waste pape(loose or in bales) or chemical pulp into a pulper.As to the design, basic dimensions and parameters may differ and can be adapted to particular projects.
How to use it ?

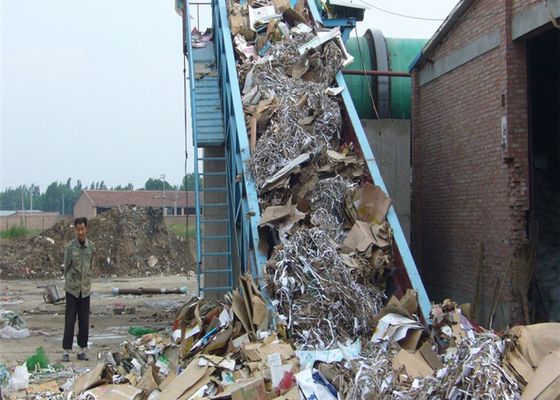

Put waste paper (loose or in bales), respectively chemical pulp, is loaded in a hopper and from here conveyed by means of a conveying chain or a band to its discharging point where falling into a pulper chest.
Chain conveyor features:
Trough plate punch forming which high strength and excellent in crushing effect.
2.Chain board adopts closed design to prevent material leaking.

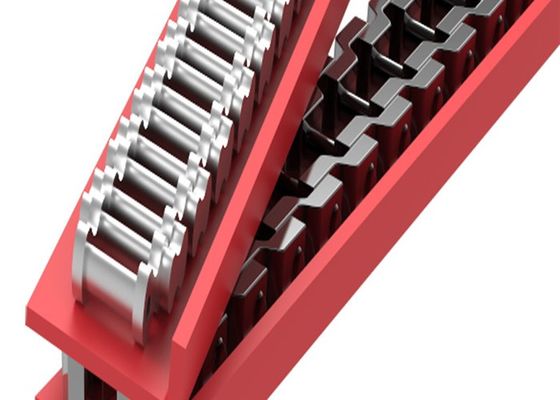

3.Two rows of idler traction chain and hollow roller shaft,and oil can be injected from pin roll to shaft sleeve and wear-resistant zinc-copper bushing.
4.Two rows of chain adopt long axis to prevent chain running deviation.
5.Chain wheel adopts cast steel to improve wear-resistant.
6.Raw material feeding plate adopts V design( more than effective conveying width 400mm) to improve raw material throughput
7.Orbit type running,operate steadily and reliably, with low friction and low power consumption.
Chain conveyor main spare parts:
a. Head drive : electric motor , reducer
b.Tail drive: tail shaft,Sprocket driven
c.drive equipment, Active sprocket device
d.chain plate parts
e. frames ,
f. Tension device
Chain conveyor packaging and delivery:
1.International package(wooden case,carbon cast and pallet).
2.Container(as customer requirements)
3.It is suitable for long distance ocean transportation and some small parts can be transported by air.
