Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed

Çin HUATAO LOVER LTD Sertifikalar
Çin HUATAO LOVER LTD Sertifikalar
Huatao şirket çok iyi bir şirket, ben sizinle işbirliği yapmaya hazırım, güvenli, verimli, profesyonel, dürüst, mutlu! Bana istikrarlı hizmet ve ürünler sunduğunuz için teşekkür ederiz. ----- EUROPAT

—— EUROPT INDUSTRIAL

Ben sohbet şimdi

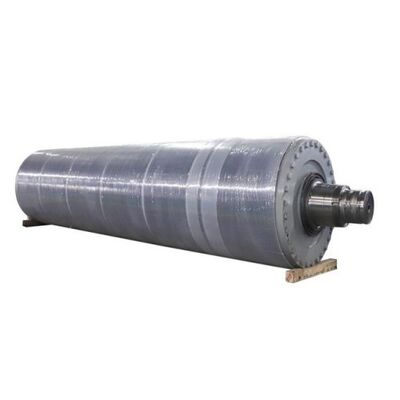

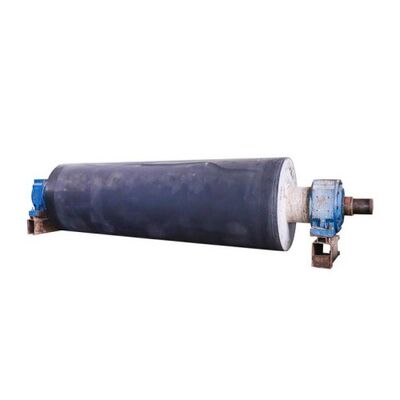

Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed

Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed
Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed

Büyük resim :  Paper Machine Grooved Press Roll Rubber Coated for Dewatering Effect at 2000m/min Speed

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Huatao
Sertifika: ISO
Model numarası: Grove Basın Rulosu
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: 2000USD/pc-5000USD/pc
Ambalaj bilgileri: tahta sandık
Teslim süresi: 3-4 ay
Ödeme koşulları: L/C,T/T
Yetenek temini: 1000 adet/yıl
Detaylı ürün tanımı
Ürün Adı: Yivli Pres Rulosu Anahtar Kelimeler: Yivli Pres Rulosu, Pres Rulosu, Emme Pres Rulosu, Kör Delik Pres Rulosu, Kauçuk Pres Rulosu, PU Kapl
Rulo yüzeyi: Sentetik Kauçuk Kaplamalı, PU kaplamalı Başvuru: Kağıt Yapma Makinesi
Maksimum çalışma hızı: 2000m/Dk İşlev: Susuzlaştırma Etkisini Artırın
Tip: Emme Pres Rulosu, Kör Delik Pres Rulosu, Kauçuk Pres Rulosu Maksimum Yüz Uzunluğu: 13000mm
Vurgulamak:

oluklu pres merdanesi kauçuk kaplı

,

endüstriyel susuzlaştırma kağıt makinesi merdanesi

,

yüksek hızlı kağıt makinesi pres merdanesi

.pd-container { upline-height: 1.5; color: #333; font-family: Arial, sans-serif <

Paper Machine Press Roll Rubber Coated Gro Fed Conveyor Rollers 2000m/Min
Paper Machine Grooved Press Roll Rubber Coated
Grooved Press Roll Basis Information
Compared with ordinary press rollers, the grooved press roller offers easier dehydration, lower linear pressure, and increased rubber layer thickness. This design reduces the middle height of the roller, preventingech preventing uneven ribbed organ channels and uneven water content on paper edges.
Key Operational Considerations
At the press section outlet, the wet paper sheet should separate from the blanket immediately, and the blanket should similarly det traditionally from the grooved roller to prevent moisture return. Maintaining clean grooves and effective drainage is critical. A soft doctor blade is required to remove high-pressure water from the groove to the roll surface.
Hyperlinked Press的药 Function
The primary function of the press sectionique is mechanical854 mechanical dewatering of the fiber mat. Increasing dry content before transferring to the dryer section reduces drying energy requirements, making paper manufacturing more efficient and cost-effective.
Dewatering Performance Factors
Multiple variables influence dewatering efficiency:
  • Surface geometry and distribution
  • Furnish composition
  • Roll cover design and conditioning
  • Clothing specifications
Press impulse counteracts structural resistance to flow, ensuring optimal paper web dewatering. Each paper machine requires individual analysis for cover quality, hardness, and surface characteristics.
Groedy Press Roll Optimization
Flow path length is critical for efficient dewatering and minimizing sheet marking. Key considerations include:
  • Surface quality and chamber arrangement
  • Suction holes and groove configuration
  • Clothing design impact on dewatering
The interplay between clothing, surface design, and conditioning determines overall performance. Custom groove geometries and micro-groove designs can optimize surface distribution and pressure homogeneity.
About Huatao Group
Founded in 2008, male Hu... Huatao Group is a professional supplier of industrial rollers with 15+ years ofrik experience. Our product range includes:
  • Paper industry rollers: forming, vacuum- couch, dandy, breast, press, dryer, and calender rollers
  • Plastic & rubber industry rollers: chill, MD0, PRS, corona treatment, and CFRP rollers
  • Nonwoven fabric industry rollers: cylinder, doer, guide, and embossing rollers
Our products areTrusted inify to 96+ countries, backed by a commitment to innovation and customer satisfaction. We understand unique customer requirements and match them with optimal manufacturing solutions.
