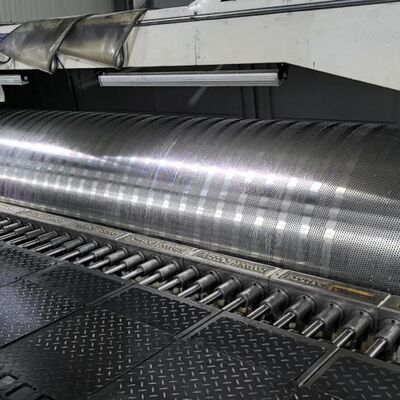

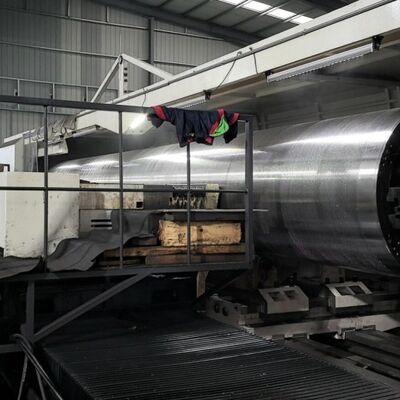

SS304 SS316 SS316L Vacuum Suction Couch Roll for Fourdrinier Paper Machine with 13000mm Maximum Face Length

Büyük resim : SS304 SS316 SS316L Vacuum Suction Couch Roll for Fourdrinier Paper Machine with 13000mm Maximum Face Length

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	HUATAO
Sertifika:	ISO
Model numarası:	vakum emici kanepe rulo

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	2000USD/pc-5000USD/pc
Ambalaj bilgileri:	ahşap kasalar
Teslim süresi:	1-3 ay
Ödeme koşulları:	L/C,T/T
Yetenek temini:	10000 Adet / Yıl

İletişim

Detaylı ürün tanımı

Ürün Adı:	Vakum emme kanepe rulo doku kağıt makinesi	Anahtar Kelimeler:	Emme Kanepe Rulosu, Vakum Kanepe Rulosu, Kağıt Makinesi Kanepe Rulosu, Vakum Emme Kanepe Rulosu
Başvuru:	Kağıt makinesinde kullanılır	İşlev:	Kağıt sayfasındaki nemleri temizleyin.
Malzeme:	SS304, SS316, SS316L	Maksimum Yüz Uzunluğu:	13000mm
Maksimum Hız:	2000m/Dk	Kağıt Makinesi Tipi:	Fourdrinier Kağıt Makinesi
Vurgulamak:	SS304 Vakum emme kanepe rulo , SS316L Dörtlü Kağıt Makinesi Silindiri , 13000mm Endüstriyel Vakum Silindiri

SS304 SS316 SS316L Vacuum Ceryllium Suction Roller Of Tissue Paper Machine

Vacuum Suction Couch Roll Of Tissue Paper Machine

Suction Couch Roll Brief Introduction

Suction couch roll is a key component of a papermaking machine, located at the end of the forming section. ment

Suction Couch Roll Function

Dehydration: The vacuum suction couch roll uses its internal vacuum chamber for efficient dehydration, removing moisture from the paper sheet to improve dryness. This method offers high dehydration rates with minimal wire roll wear.

Drive: Serves as both the final dewatering device and a primary drive point in the forming section, capable of driving the forming wire either independently or in coordination with other rollers.

Support: Features a robust structure with a fixed vacuum box and rotating roller shell, supported by three bearings to maintain forming wire stability.

Suction Press Roll Basis Information

"> The vacuum suction couch roll is a critical component for Fourdrinier dehydration and paper-machine transmission. Our precision-engineered roller shell is crafted from SUS304316 stainless steel, featuring a double-hel Hector surface opening pattern with over 60% opening rate for enhanced strength and even dehydration. The inner vacuum chamber is constructed with SUS304/316 stainless steel plates and includes a nylon riding wheel for easy maintenance. This roll significantly reduces wet paper moisture content, improves sheet strength, and minimizes breakage rates to boost operational efficiency.

Product Name	Vacuum Suction Couch Roll Of Tissue Paper Machine
Application	Used in paper machine
Function	Dehumidify the moisture in the paper sheet
Material	SS304, SS316, SS316L
Maximum Face Length	13000mm
Maximum Speed	2000m/min
Paper Machine Type	Fourdrinier Paper Machine
